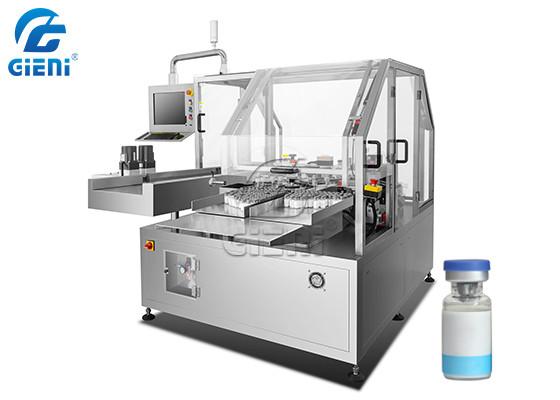

Rotary Type Vertical Round Bottle Labeling Machine High Speed Non Stop 2.8KW

Brand Name : GIENI

Model Number : GTB-308

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1

Delivery Time : 30

Packaging Details : plywood case, solid export package, 1 pallet

Product name : Rotary Type High Speed Non-Stop Vertical Round Bottle Labeling Machine

Labeling Speed : 300-550 bottles／min

Accuracy : ±0.5mm

Bottle Size : Φ16-50mm

Type : Rotary Type

Automatic Grade : Full Automatic

Dimension : 4200*1200*1600mm(L*W*H)

Contact Now

Rotary Type High Speed Non-Stop Vertical Round Bottle Labeling Machine is mainly suitable for automatic labeling and coding functions on cylindrical packaging containers in the pharmaceutical, daily chemical, and food industries.

Applications of round bottle labeling machine:
Vial, ampoule bottle, Schering bottle, pharma syrup, dry syrup, medical bottle, juicy bottle, liquid foundation, essential oil, sun stick, etc.


Key Features of round bottle labeling machine:

  • The double label head can change the label and the label backing paper without stopping the machine, so as to improve the production efficiency;
  • Wide plate chain feeding platform, compatible with manual feeding and connection use;

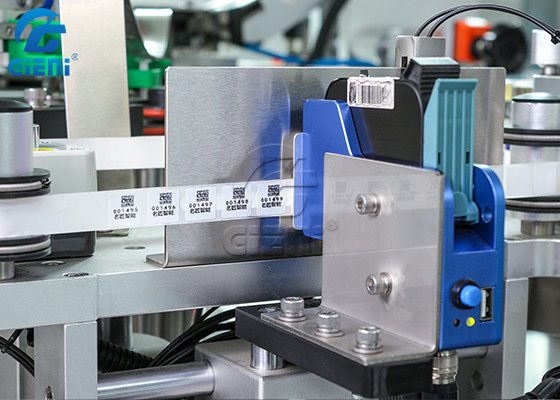

  • Optional coding and visual inspection.

Technical Parameter:

Model GTB-308
Bottle size Φ16-50mm
Labeling speed 300-550bottles／min
Precision ±0.5mm
Pressure 0.4-0.7Mpa
Power AC220 ±10% 50HZ 2.8KW
Dimension 4200*1200*1600mm

Configuration:

Label feeding servo motor YASKAWA
Label feeding motor driver YASKAWA
Photoelectric switch Omron
Proximity switch Autonics
PLC Siemens
Sensor Sik/Opus
Low voltage device Schneider
The electromagnetic valve AirTAC

Rotary Type Vertical Round Bottle Labeling Machine High Speed Non Stop 2.8KWRotary Type Vertical Round Bottle Labeling Machine High Speed Non Stop 2.8KWRotary Type Vertical Round Bottle Labeling Machine High Speed Non Stop 2.8KW
